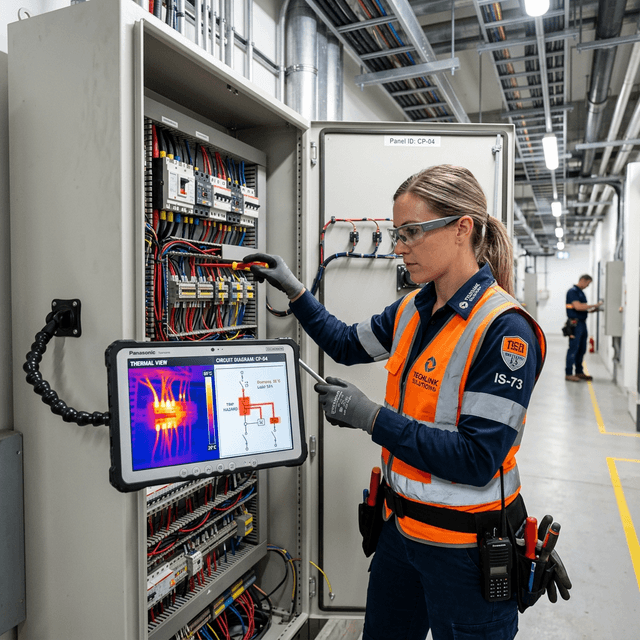

Electrical panel inspection
Overlay thermal imaging data and circuit diagrams on electrical panels during inspection rounds, highlighting connections that need attention based on AI analysis.
← Solutions
AR-Guided Inspection & Troubleshooting
See the Data Where the Equipment Is
Overlay digital data onto physical assets through augmented reality for precise, real-time diagnostics and faster repairs guided by expert knowledge.
Key Capabilities
- Augmented Reality Data Overlay
Live sensor readings, equipment status, and maintenance history overlaid on physical equipment through AR/MR headsets. Technicians see temperature, pressure, and vibration data without leaving the equipment location.
- Step-by-Step Troubleshooting
Expert-authored troubleshooting procedures displayed as AR overlays directly on the equipment. Follow guided decision trees authored in Director to reach root cause diagnosis.
- Inspection Record Keeping
Capture inspection findings — photos, notes, status updates — linked to the specific asset in the digital twin through Inspector. Build complete inspection records as part of the work order workflow.
- Multi-Device Support
Deliver AR-guided inspections on HoloLens 2, mobile AR (iOS/Android), and desktop — authored once in Director, deployed to any platform via DataMesh One.
Use Cases
Practical applications and proven success scenarios across industries.

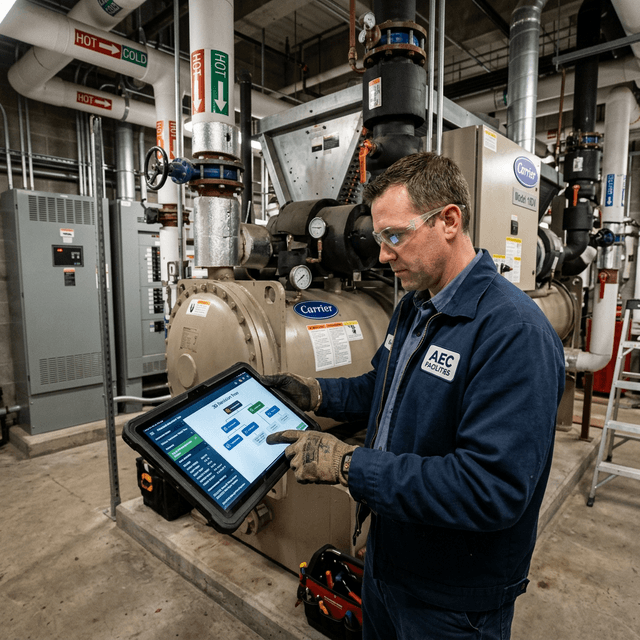

HVAC system troubleshooting
Guide technicians through chiller, AHU, and ductwork troubleshooting with AR-based decision trees that access live sensor data and maintenance history in context.
Quality inspection with digital overlay
Overlay digital specifications, tolerances, and inspection criteria on manufactured products for visual inspection guidance.
Bring digital intelligence to the physical point of work
The gap between sensor data on a screen and the equipment in front of you creates a cognitive disconnect. AR inspection through DataMesh One eliminates this gap by displaying relevant data, procedures, and guidance exactly where the work happens — on the equipment itself.
Expert knowledge available everywhere
Not every facility has senior experts on-site. Director-authored AR-guided procedures ensure that every technician, at every location, can perform inspections with expert-level guidance.
Inspection data that actually gets captured
Manual inspection documentation is tedious and often incomplete. AR-guided inspection through Inspector captures findings at each step, creating complete digital records linked to the asset in the digital twin.
Related Products
- Director — 3D procedure authoring
- DataMesh One — AR/MR field delivery
- Inspector — Inspection records & work orders
- FactVerse — Digital twin platform
Frequently Asked Questions
The platform supports Microsoft HoloLens 2, Magic Leap, and mobile AR on iOS/Android devices. Content is authored once and deployed to any platform.
Inspection procedures are authored in FactVerse Designer using visual tools — import equipment 3D models, add inspection points, create decision trees, and link data sources.
